Noosa Cat 3500

When Noosa Cat launched the glorious 3500 Series, characterised by brilliance and grandeur, a new era in high performance offshore boating began in Australia and the South Pacific.

Available initially as Cruiser and Commercial (with short or long wheelhouse and various internal configurations) the bulk of the first production run was purchased by the Royal Australian Navy.

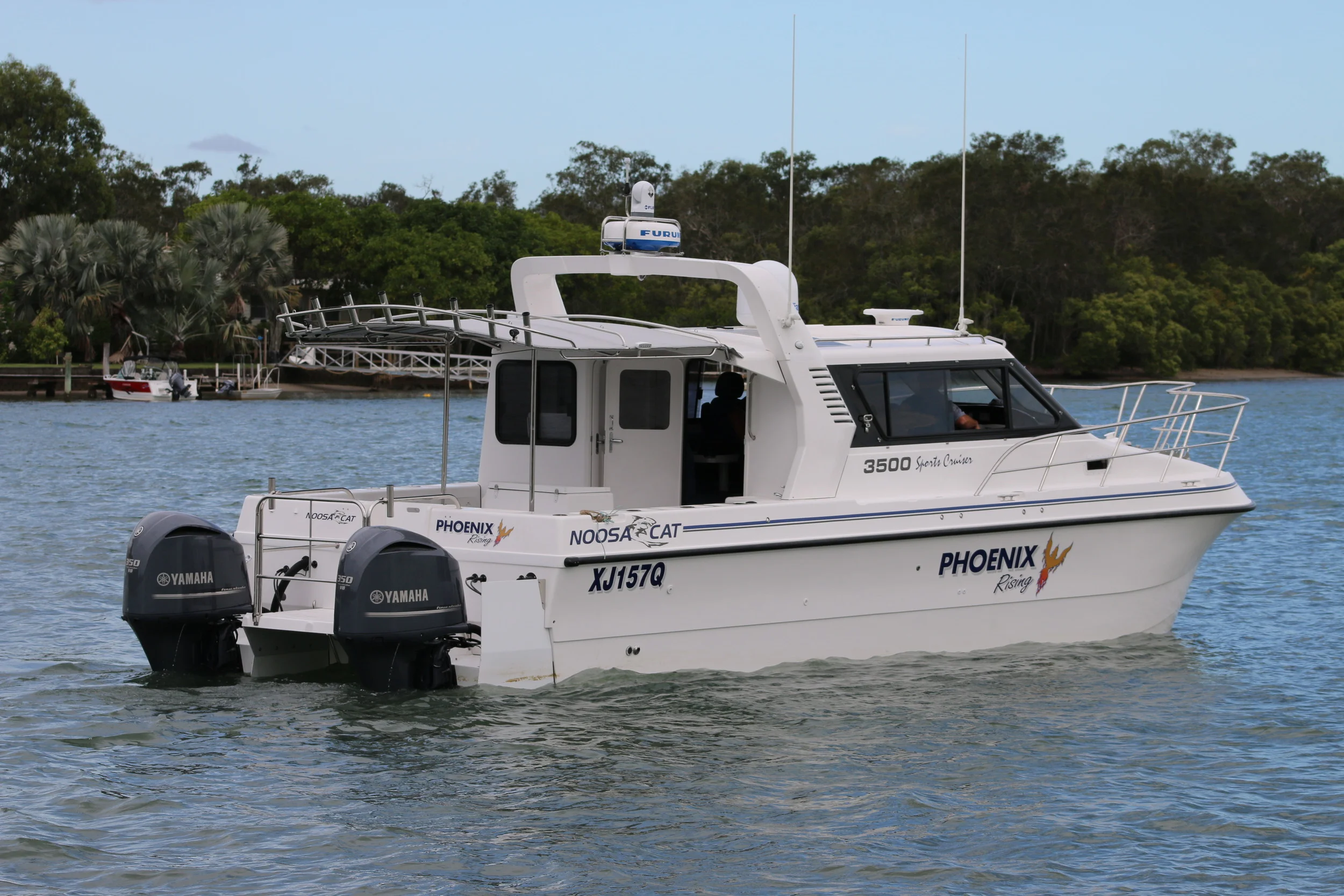

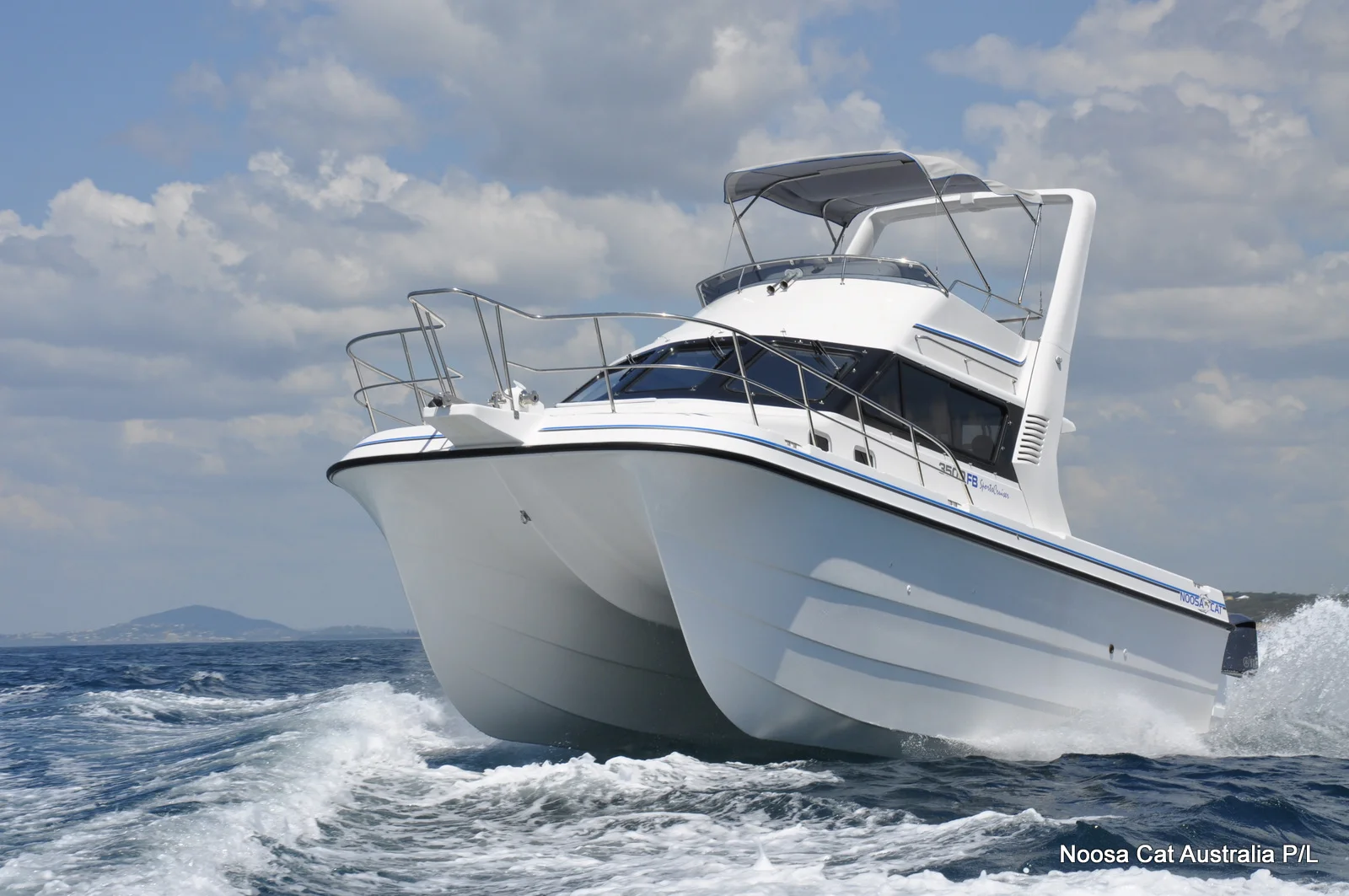

Also available with Flybridge, the 3500 can be purchased with outboard, stern drive or inboard power.

Water Tests + Performance Bulletins

Boat Sales 3500 Sportscruiser Water Test
Fisherman & Boatowner 3500 Water Test
Australian Boat Mags' 3500 SAR Water Test

MerCruiser TDI 235hp v6 Performance Bulletin

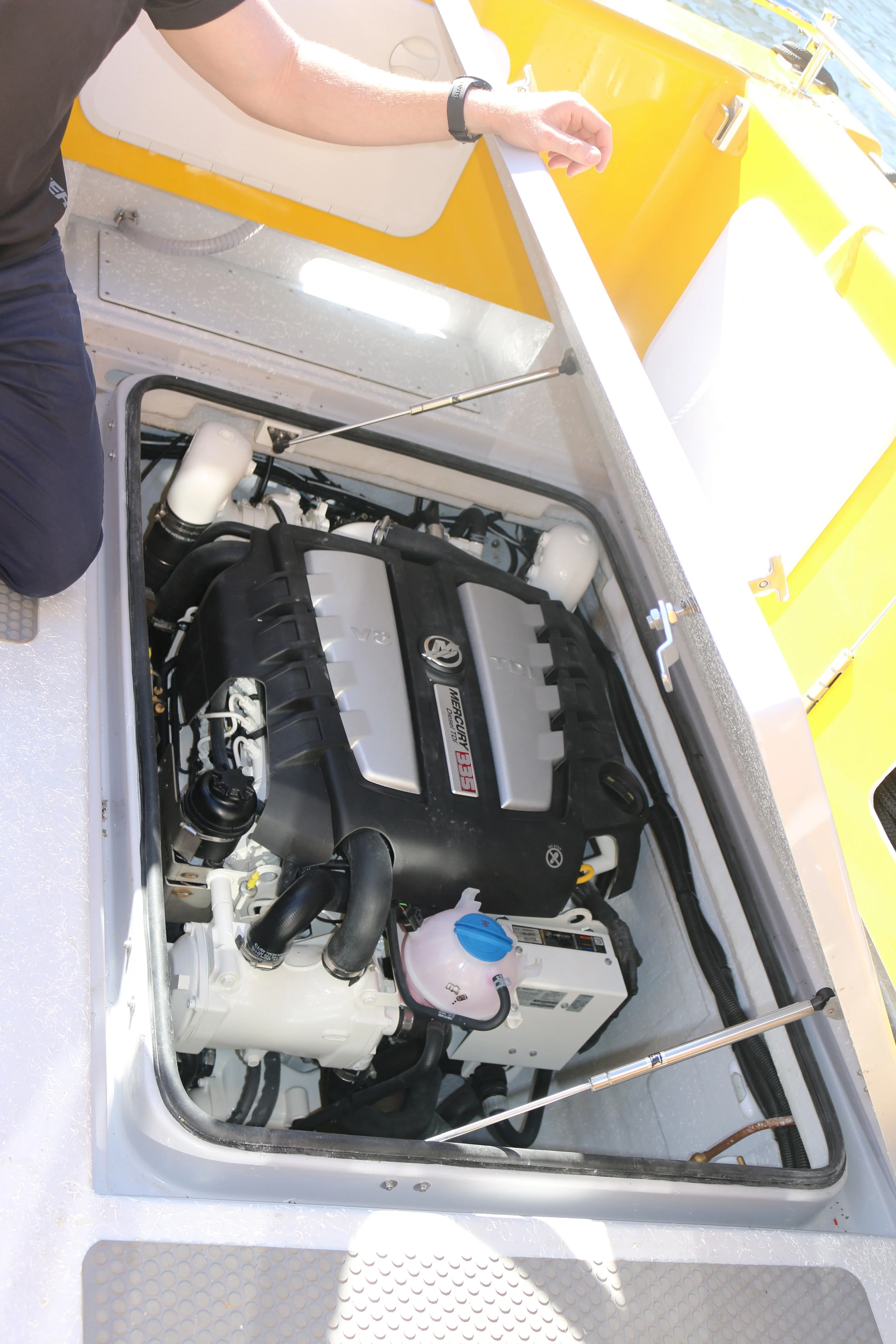

MerCruiser TDI 335hp v8 Performance Bulletin
MerCruiser TDI 335hp v8 Press Release

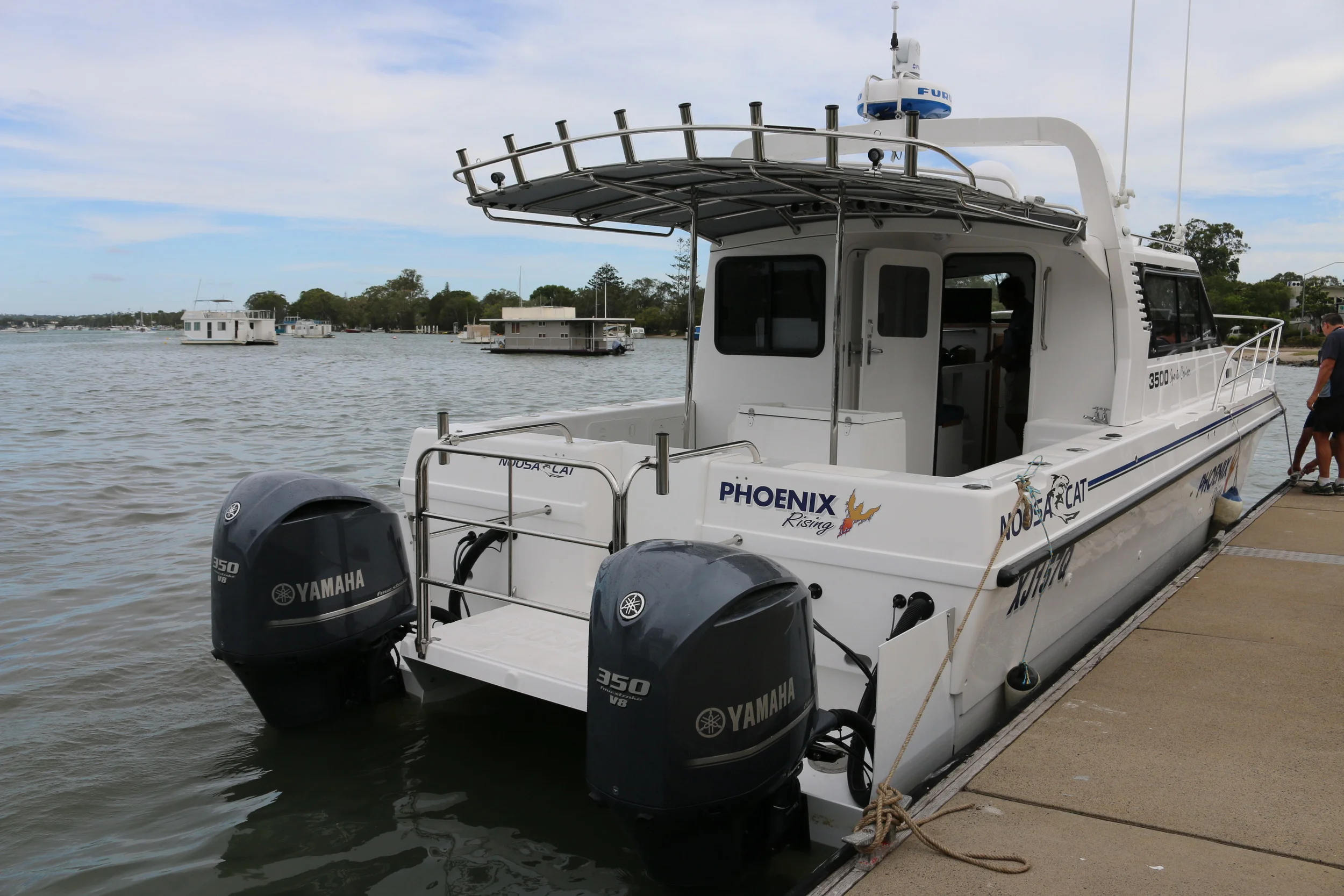

Yamaha 350hp 4-stroke v8 Promo
Yamaha 350hp 4-stroke v8 Performance Bulletin

3500 Specifications

Model Configurations Cabin / Cabin + Flybridge
Recommended Base Outboard Engine Horsepower 2 x 200hp
Recommended Base Stern drive / Inboard Engine Horsepower 2 x 200hp
Moulded Length 9.30m
Shipping Length 10.46m
Beam 3.50m
Hull Draft at Rest 0.68m
Displacement 4,710kg
Base Displacem.(with 2x200 Volvo) 5,366 kg - 7,000kg
Cockpit length (inside or clear space) 2.76m
Cockpit width (inside or clear space) 2.72m
Maximum Recommended Power Stern Drive 2 x 310hp
Maximum Recommended Power Shaft Drive 2 x 310hp
Maximum Recommended Power Outboard Engine 2 x 350hp
Minimum Recommended Power Stern Drive 2 x 150hp
Minimum Recommended Power Shaft Drive 2 x 200hp
Minimum Recommended Power Outboard Engine 2 x 200hp

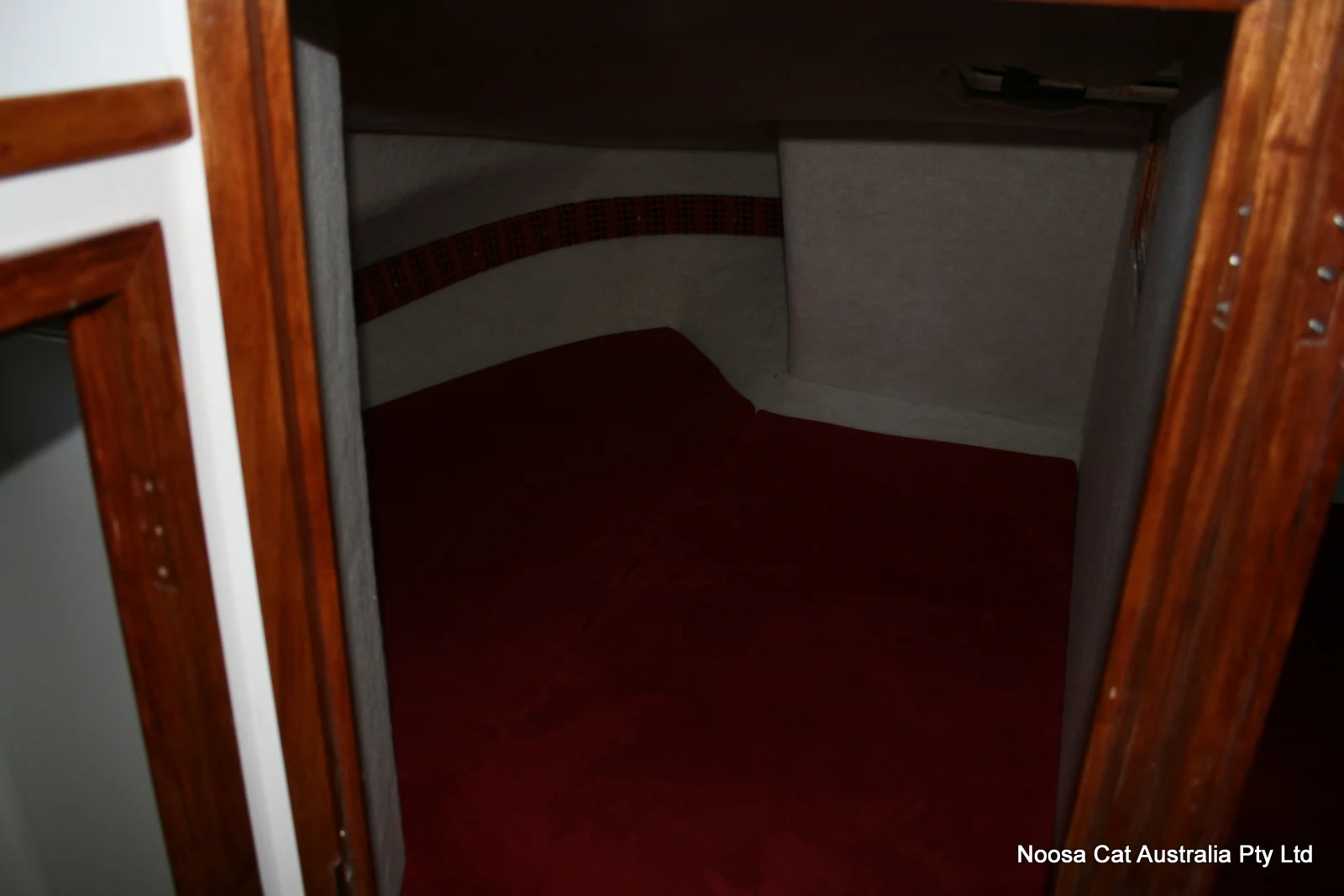

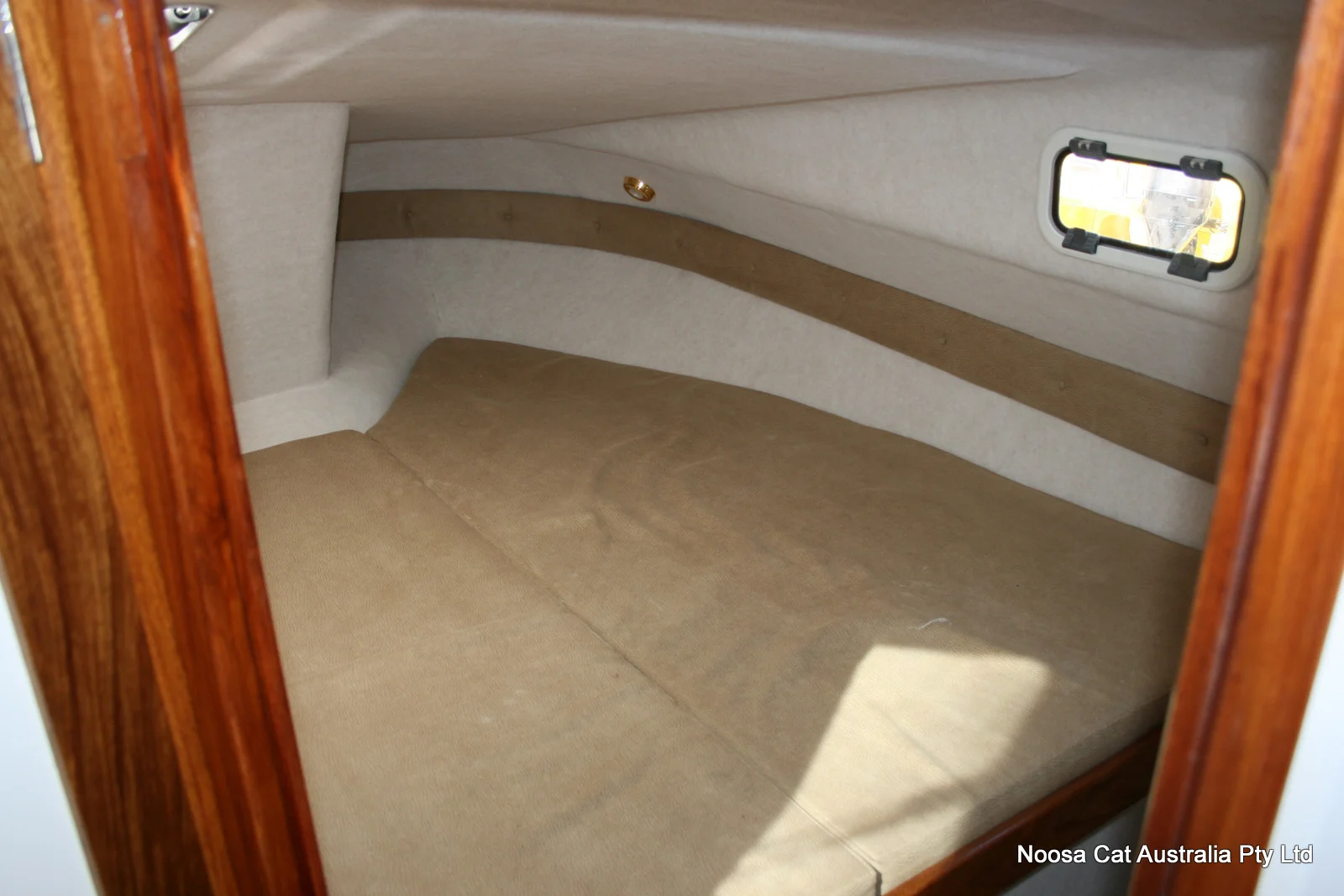

Base Berth Plan 2 x Double Berths
Fuel Tanks Standard (App.) 2 x 340 litres - larger capacity available
 Water Tanks (App.) Optional
